3M™ EMI Absorbers
Flexible EMI Absorbers for High-Performance Electronic Noise Suppression

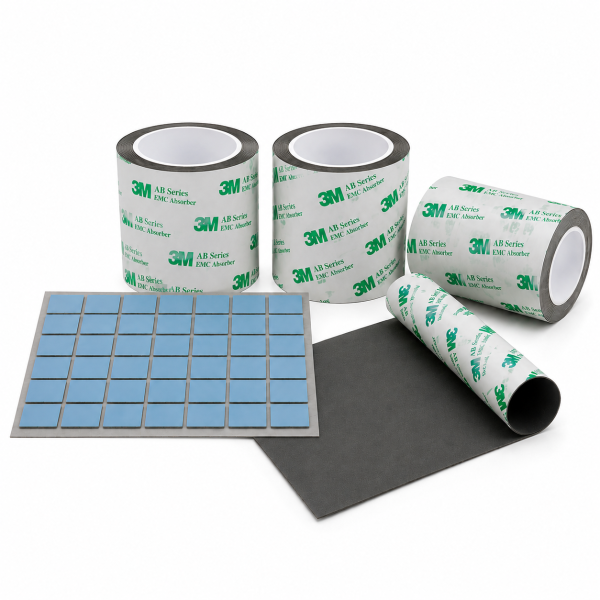

Overview of 3M EMI Absorbers
3M™ EMI Absorbers are flexible composite materials that incorporate specialised magnetic particles and an optional nonconductive PSA to absorb near-field EMI.
They help protect nearby electronics from EMI by suppressing EMI noise at multiple frequencies. 3M absorbers are available with a wide range of performance characteristics for effective EMI management,mincluding a variety of thicknesses, resin systems, temperature ranges, a sheet and roll format, and with and without adhesive.
These thin, highly permeable magnetic absorbers help reduce EMI noise, help improve the signal-to-noise ratio for better system performance in some of the most extreme environments, and help enable thinner, lighter solutions.
EM25TP Series
High-Performance Magnetic Film for Targeted Frequency Shielding
Unique Features and Benefits:
- Broad frequency absorber
- High permeability magnetic film
- Absorbing performance 200GHz – 4GHz
- Targeted permeability for magnetic shielding <100 kHz – 3 MHz
EM25TP-0100-A10
- Thickness (mm): 0.1
- Adhesive: Nonconductive Acrylic
- Initial permeability: 250
- Operating Frequency: 200MHz – 4GHz
- Operating Temperature: -25°C to 90°C
EM25TP-0200-A20
- Thickness (mm): 0.2
- Adhesive: Nonconductive Acrylic
- Initial permeability: 250
- Operating Frequency: 200MHz – 4GHz
- Operating Temperature: -25°C to 90°C
EM25TP-005-A10
- Thickness (mm): 0.05
- Adhesive: Nonconductive Acrylic
- Initial permeability: 250
- Operating Frequency: 200MHz – 4GHz
- Operating Temperature: -25°C to 90°C
AB7000 Series
Flexible Broadband Near-Field Absorbers for High-Frequency Noise Control
Unique Features and Benefits:
- Good workability
- High resistivity and permeability
- Improved lower frequency absorber vs the 3M Absorber AB5000 series (@ <1GHz)
- Available with and without (-WO) adhesive
- Long shelf life (18 months)
- Broader temperature performance than 3M absorber AB7000HF series
AB7010HF
- Thickness (mm): 0.13
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 110
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 85°C
AB7020HF
- Thickness (mm): 0.25
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 110
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 85°C
AB7030HF
- Thickness (mm): 0.35
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 110
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 85°C
AB7050HF
- Thickness (mm): 0.55
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 110
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 85°C
AB7010E/AB7010E-WO
- Thickness (mm): 0.1
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 100u’ @ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 105°C
AB7020E/AB7020E-WO
- Thickness (mm): 0.2
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 100u’ @ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 105°C
AB7030E/AB7030E-WO
- Thickness (mm): 0.3
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 100u’ @ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 105°C
AB7050E/AB7050E-WO
- Thickness (mm): 0.5
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 100u’ @ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -25°C to 105°C
AB5000 Series
Ultra-Thin Magnetic Absorbing Sheets for Space-Constrained Electronics
Unique Features and Benefits:
- Standard absorber
- Advanced EMI absorber, lower peak absorber frequency than 3M EMI Absorber AB5000HF, thermal conductivity 0.7 W/m-K
AB5010HF/SHF
- Thickness (mm): 0.1
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 55 HF, 30 SHF
- Operating Frequency: 300MHz– 2GHz
- Operating Temperature: -25°C to 85°C
AB5020HF/SHF
- Thickness (mm): 0.2
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 55 HF, 30 SHF
- Operating Frequency: 300MHz– 2GHz
- Operating Temperature: -25°C to 85°C
AB5030HF/SHF
- Thickness (mm): 0.3
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 55 HF, 30 SHF
- Operating Frequency: 300MHz– 2GHz
- Operating Temperature: -25°C to 85°C
AB5050HF/SHF
- Thickness (mm): 0.5
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 55 HF, 30 SHF
- Operating Frequency: 300MHz– 2GHz
- Operating Temperature: -25°C to 85°C
AB5100HF/SHF
- Thickness (mm): 1
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 55 HF, 30 SHF
- Operating Frequency: 300MHz– 2GHz
- Operating Temperature: -25°C to 85°C
AB6000 Series
Hybrid Absorbing and Shielding Sheets for Dual-Action EMI Control
Unique Features and Benefits:
- Excellent for EMI shielding & insulation
- Aluminum layer provides excellent shielding effectiveness up to 18 GHz
- Available in sheets or rolls
- PET absorber reduces EMI and ESD in enclosed cavities
AB6005SHF (PET+AL+PET)
- Thickness (mm): 0.1
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 30 – 250
- Operating Frequency: 10MHz– 18GHz
- Operating Temperature: -30°C to 105°C
AB6005HF (AL+PET)
- Thickness (mm): 0.1
- Adhesive: Acrylic nonconductive PSA
- Initial permeability: 30 – 250
- Operating Frequency: 10MHz– 18GHz
- Operating Temperature: -30°C to 105°C
AB8000 Series
High-Temperature Magnetic Absorbers for Solder Reflow Environments
Unique Features and Benefits:
- High permeability
- High performance resin system for solder reflow stable performance
- High temperature resistance (150°C)
- Available without adhesive (-WO)
- Long shelf life (2 years)
AB8010-WO
- Thickness (mm): 0.1
- Adhesive: No Adhesive
- Initial permeability: 110u’~130@ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -40°C to 150°C
AB8020-WO
- Thickness (mm): 0.2
- Adhesive: No Adhesive
- Initial permeability: 110u’~130@ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -40°C to 150°C
AB8030-WO
- Thickness (mm): 0.3
- Adhesive: No Adhesive
- Initial permeability: 110u’~130@ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -40°C to 150°C
AB8050-WO
- Thickness (mm): 0.5
- Adhesive: No Adhesive
- Initial permeability: 110u’~130@ 3 MHz
- Operating Frequency: 300MHz– 4GHz
- Operating Temperature: -40°C to 150°C
AB3000 Series
Cost-Effective Magnetic Sheets for Standard Noise Suppression and Signal Integrity.
Unique Features and Benefits:
- Broad absorbing performance1-10 GHz
- Availability with and without (-WO) adhesive
- Large sheet format for improved yield (340mm x 340mm)
AB3010/AB3010-WO
- Thickness (mm): 0.1
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 30
- Operating Frequency: 1GHz – 10GHz
- Operating Temperature: -25°C to 90°C
AB3030/AB3030-WO
- Thickness (mm): 0.3
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 30
- Operating Frequency: 1GHz – 10GHz
- Operating Temperature: -25°C to 90°C
AB3050/AB3050-WO
- Thickness (mm): 0.5
- Adhesive: Nonconductive Acrylic (optional)
- Initial permeability: 30
- Operating Frequency: 1GHz – 10GHz
- Operating Temperature: -25°C to 90°C
Korzyści
Oto dlaczego producenci wybierz RGH:
High-Frequency Performance with Flexible, Tailored Customisation Options. Here’s why manufacturers rely on RGH:
-
Broadband Absorption
Absorbing capabilities up to 10GHz with targeted permeability up to 10GHz
-
Thickness-Dependent Performance
Absorbing performance is thickness dependent (ex. 200MHz to 4GHz for 3M absorber EM25TP)
-
Enhanced Signal Integrity
Helps improve antenna performance and reduce EMI interference within a device
-
Flexible Stack-Up Design
Multiple thicknesses and optional adhesive to create a custom stack-up
-
Extended Shelf Life
Longer shelf life options available (up to 2 years)
-
Easy Application & Handling
Supplied on a removable liner for easy handling
Galeria
3M™ EMI Absorbers Rozwiązania Materiałowe
See how RGH converts advanced EMI absorbers to meet the exact specifications of your application, from near-field noise suppression and signal integrity optimisation to targeted magnetic shielding and component isolation. Explore the gallery and call us to discover how these high-permeability, custom-cut materials enhance performance, reliability, and durability across a wide range of electronic designs.
Dostarczamy doskonałość Co mówią nasi klienci
Rzadko zdarza się współpracować z firmą, która jest tak wydajna i niezawodna, a jednocześnie pozostaje uprzejma i przyjazna. RGH Converting to właśnie taki rzadki przypadek. Początkowo zwróciliśmy się do nich z trudnym wyzwaniem materiałowym, a ich zespół działał jak prawdziwe przedłużenie naszego własnego, zapewniając jasne wyjaśnienia techniczne i prototypy o wysokim standardzie w imponującym tempie.
Ich doświadczenie jako Preferred Converter 3M dało nam pełne zaufanie do jakości końcowego produktu. Bez wahania polecam RGH każdemu producentowi szukającemu precyzji, niezawodności i podejścia opartego na partnerstwie.
Klient motoryzacyjny
Skontaktuj się z nami
Masz pytanie lub potrzebujesz wsparcia w związku z wyzwaniami materiałowymi? Nasi Specjaliści są do Twojej dyspozycji.
Porozmawiaj z naszym zespołem technicznym o wymaganiach Twojego projektu i dowiedz się, jak nasza wiedza w zakresie konwersji może zapewnić odpowiednie rozwiązanie materiałowe dla Twojego zastosowania.
"*" oznacza pola obowiązkowe
Najczęściej zadawane pytania
Najczęściej zadawane pytania dotyczące 3M™ EMI Absorbers
Got questions about 3M™ EMI Absorbers? We've answered the most common queries about its performance, applications, and customisation options to help you choose the right solution for your project.
-
What custom shapes and formats can RGH provide?
As a precision converter, RGH can supply EMI absorbers in rolls, sheets, strips, or custom die-cut parts tailored to the exact geometry of your electronic housing or internal components. This ensures a perfect fit for complex layouts and fast integration into your manufacturing process.
-
What is the difference between an EMI absorber and an EMI shield?
While EMI shields (like copper or aluminum foils) reflect electromagnetic energy to block it from passing through, EMI absorbers contain specialised magnetic particles that actually soak up the noise and convert it into negligible thermal energy. Absorbers are ideal for eliminating internal reflections and suppressing near-field noise within a closed device.
-
How do I choose the correct thickness for an EMI absorber?
Absorbing performance is highly thickness-dependent. Thicker absorbers generally offer higher attenuation and work better at lower frequencies, whereas ultra-thin absorbers are optimised for high-frequency noise and tight spaces. Our technical team can help you select the exact thickness required to target your specific problem frequencies.
-
Can EMI absorbers be supplied with adhesive backing?
Yes. We can convert EMI absorbers with an optional pressure-sensitive adhesive (PSA)—available in both conductive and nonconductive options. This allows for quick, reliable peel-and-stick application directly onto components, shields, or enclosures during production line assembly.
-
How does an EMI absorber improve antenna performance?
When placed near internal antennas, absorbers suppress stray electromagnetic noise and crosstalk from nearby microprocessors or high-speed components. By cleaning up this background "noise," the absorber significantly improves the signal-to-noise ratio (SNR), leading to better wireless connectivity and device performance.
